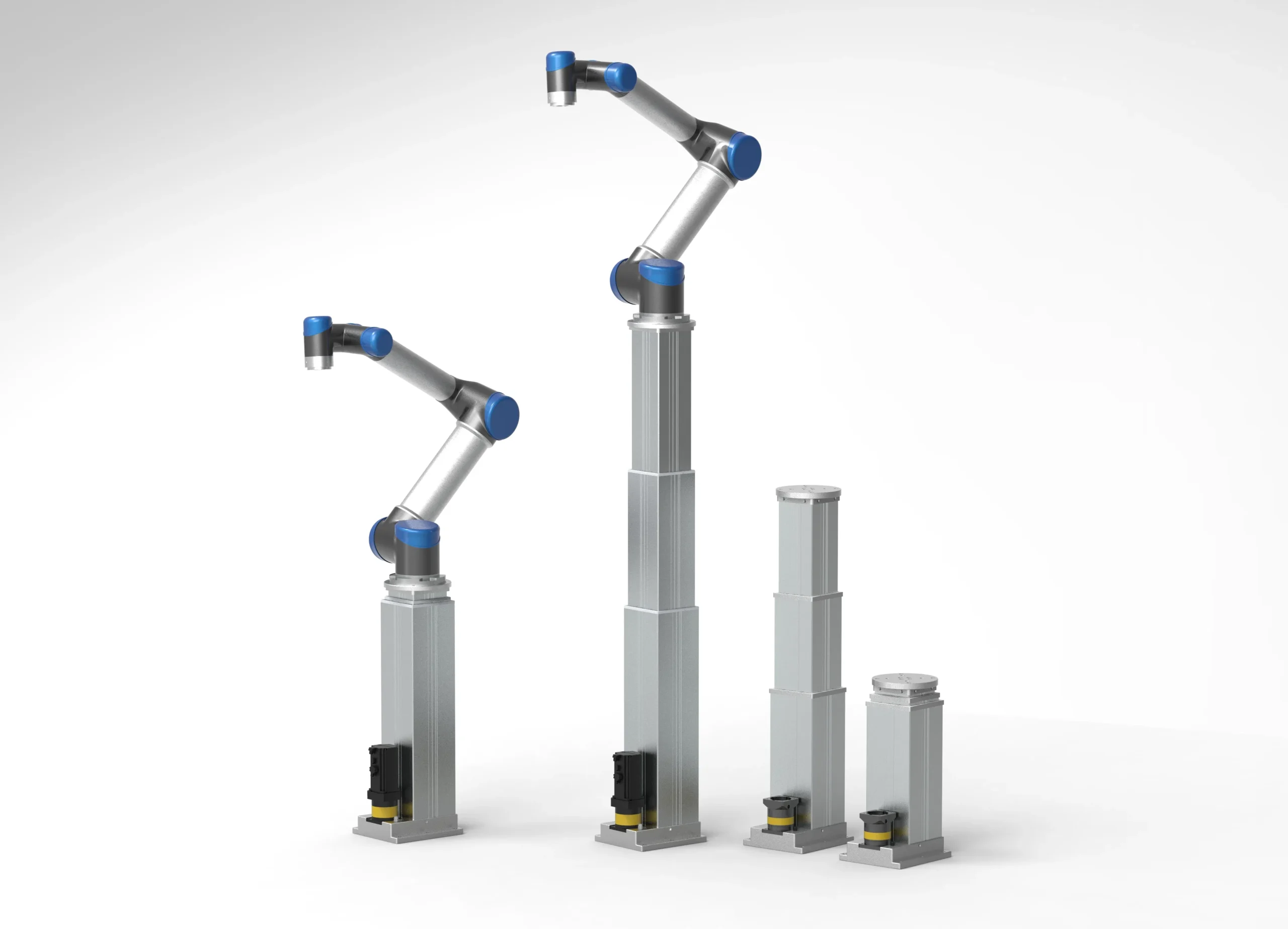

SLA-LC03-RC Servo Lifting Column

Description

The SLA-LC03-RC servo lifting column is designed to elevate the capabilities of collaborative robotic systems. Utilizing cutting-edge servo motor technology, it offers remarkable precision and smooth movement, ensuring robust stability across various automation applications. Whether in manufacturing, logistics, or any other industry, this lifting column enhances performance and flexibility, making it an essential component for innovative automation solutions.

SLA-LC03-RC Servo Lifting Column for Collaborative Robots: Precision, Reliability, and Versatility

The SLA-LC03-RC servo lifting column is specifically engineered to enhance the performance and flexibility of collaborative robotic systems across various industries. Equipped with advanced servo motor technology, this lifting column delivers exceptional precision, smooth movement, and robust stability, making it ideal for diverse automation applications.

Powerful and Versatile Motor Options

The SLA-LC03-RC servo lifting column is available with two distinct motor configurations—DC servo motor (48V DC) and AC servo motor (220V AC)—providing optimal solutions tailored to your specific power requirements and operational environments. With these versatile motor options, you can seamlessly integrate the lifting column into both industrial and collaborative robotic applications.

High Load Capacity and Dynamic Performance

Designed to handle demanding operational conditions, the SLA-LC03-RC offers impressive load-bearing capabilities:

• Maximum Thrust (Pull Force): Up to 5,000N (standard), or 3,000N depending on selected configuration.
• Maximum Speed Under Load: Achieves a rapid movement speed of 100mm/s under a considerable load of 2,000N, ensuring efficient and timely positioning.

This combination of high thrust and fast speed makes the SLA-LC03-RC ideal for applications involving precision lifting, positioning, and handling tasks.

Compact and Efficient Installation

The SLA-LC03-RC servo lifting column features an innovative and space-saving design. The minimum installation size is calculated efficiently as Stroke/2 + 350mm, optimizing space utilization and making it suitable for compact robotic setups. Its sleek and professional appearance in aluminum silver-gray finish integrates seamlessly with modern industrial aesthetics.

Robust Structure with High Stability

Built to withstand rigorous operational demands, this lifting column provides superior mechanical stability and reliability:

• Dynamic Lateral Moment: Up to 1,000Nm, ensuring stable operation during motion.
• Static Lateral Moment: Up to 1,800Nm, providing excellent stability and load support when stationary.

These specifications highlight its suitability for collaborative robotics applications requiring precise and stable vertical movements.

Quiet Operation and Wide Temperature Adaptability

Noise levels are kept exceptionally low (55~68 DB), promoting comfortable working conditions and compliance with stringent industrial noise regulations. Furthermore, the SLA-LC03-RC servo lifting column is engineered to operate reliably within a broad temperature range from -35°C to +75°C, ensuring consistent performance across diverse environmental conditions.

Precision Screw Mechanisms for Enhanced Accuracy

Depending on your precision and speed requirements, the SLA-LC03-RC lifting column offers two types of screw mechanisms:

• Ball Screw: Ideal for high-accuracy, efficient, and smooth linear positioning operations.
• Trapezoidal Screw: Suitable for cost-effective applications requiring durability and moderate precision.

Intelligent Control and Built-in Safety Features

The lifting column comes equipped with built-in limit signals to prevent operational overtravel, ensuring enhanced safety and reliability. It also offers advanced control capabilities via CAN bus control, enabling seamless integration into sophisticated automation and robotics control systems.

Applications Across Industries

With its robust design, precise control, and excellent adaptability, the SLA-LC03-RC servo lifting column is perfectly suited for various collaborative robot use-cases, including:

• Automated assembly lines
• Packaging systems
• Medical and healthcare robots
• Automotive manufacturing
• Precision positioning and material handling tasks
• Collaborative workstations

Conclusion: Why Choose SLA-LC03-RC Servo Lifting Column?

The SLA-LC03-RC servo lifting column combines powerful performance, superior reliability, and versatile control options to meet the demanding needs of modern collaborative robotics systems. Whether you require compact installation, high thrust, precise control, or quiet operation, this lifting column is the ideal choice for advancing your automated processes.
